Conference Papers Year : 2019

29GHz-bandwidth monolithically integrated EAM-VCSEL

Abstract

The increase in modulation bandwidth of a vertical-cavity surface-emitting laser (VCSEL) can be achieved through the vertical integration of a modulator onto the laser. This approach has already been proposed and demonstrated to be competitive [1-3]. In this specific case, a double mesa structure with three contacts is needed to apply a high-frequency voltage signal to the modulator section and inject a CW current into the underlying VCSEL section. The middle contact serves as a shared ground. Indeed, splitting the emitting and the modulating parts circumvents the carrier dynamics limitation of the modulation bandwidth encountered in direct current-modulated VCSELs. However, the parasitic capacitances of the access line and contact pad play a significant role in the high-frequency limit of such a device. In this paper, we present the design, fabrication and modulation characteristics of an electro-absorption modulator (EAM) vertically-integrated onto an 850-nm VCSEL that is compatible with high-frequency operation. The two optical cavities are such that their mutual optical coupling is small to improve the modulation properties at high frequencies. This EAM-VCSEL device has been successfully fabricated by molecular beam epitaxy, followed by an original technological process [4]. In particular, planarized BCB layers and microstrip access lines have been implemented to optimize the high-frequency signal injection. Thanks to the optimized wavelength detuning between the cavities resonances of the EAM and the VCSEL and respectively to the quantum well absorption tail of the modulator, the EAM modulator exhibits a modulation depth of more than 40% within a 4V span. This vertically integrated EAM-VCSEL approach enables also to minimize the wavelength chirp during the modulation, which in our case is lower than 80 pm. Finally, 3-dB frequency bandwidths up to 29 GHz were measured on both stand-alone vertical EAM devices and vertically-integrated EAM-VCSELs. (a) (b)Fig. 1 (a) Schematics of the EAM-VCSEL structure under study with planarized BCB and (b) high-frequency modulation response of the EAM-VCSEL device with different DC bias voltages applied to the EAM.
Fichier principal

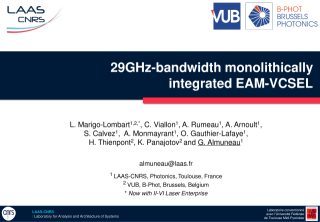

Vignette du fichier
EAM-VCSEL_VCSEL-day-2019_070519.pdf (2.64 Mo) Télécharger le fichier
Marigo_VCSEL-day_2019.pdf (137.05 Ko) Télécharger le fichier
Origin : Files produced by the author(s)

Dates and versions

hal-02391664 , version 1 (09-12-2019)

Identifiers

  • HAL Id : hal-02391664 , version 1

Cite

Ludovic Marigo-Lombart, Christophe Viallon, Alexandre Rumeau, Alexandre Arnoult, Stéphane Calvez, et al.. 29GHz-bandwidth monolithically integrated EAM-VCSEL. Workshop VCSEL Day 2019, May 2019, Bruxelles, Belgium. ⟨hal-02391664⟩
